Project Description
CORNER SHOWER ENCLOSURE
Clint Duo
Our Clint line distinguishes itself for the new opening system, which is integrated into the profile and offers the biggest entry space, and a simple and immediate access to the inner of the shower room. A selection of slim and essential items, which will transform your bathroom by conciliating the design research to the practicality. This line is particularly recommended for its utility thanks to the 1850 mm height

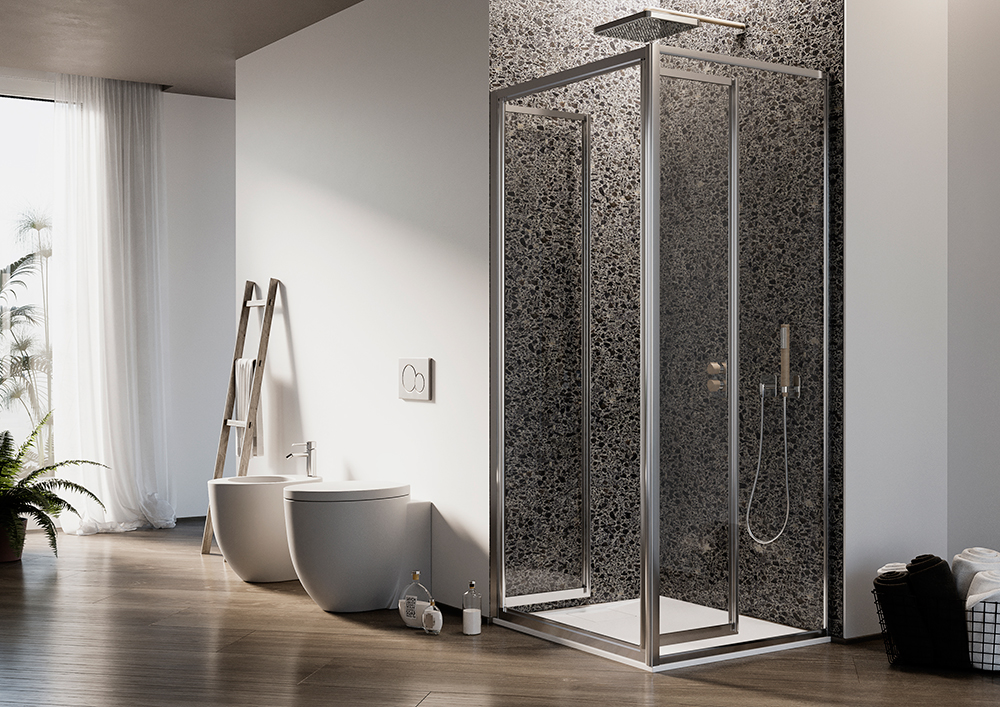

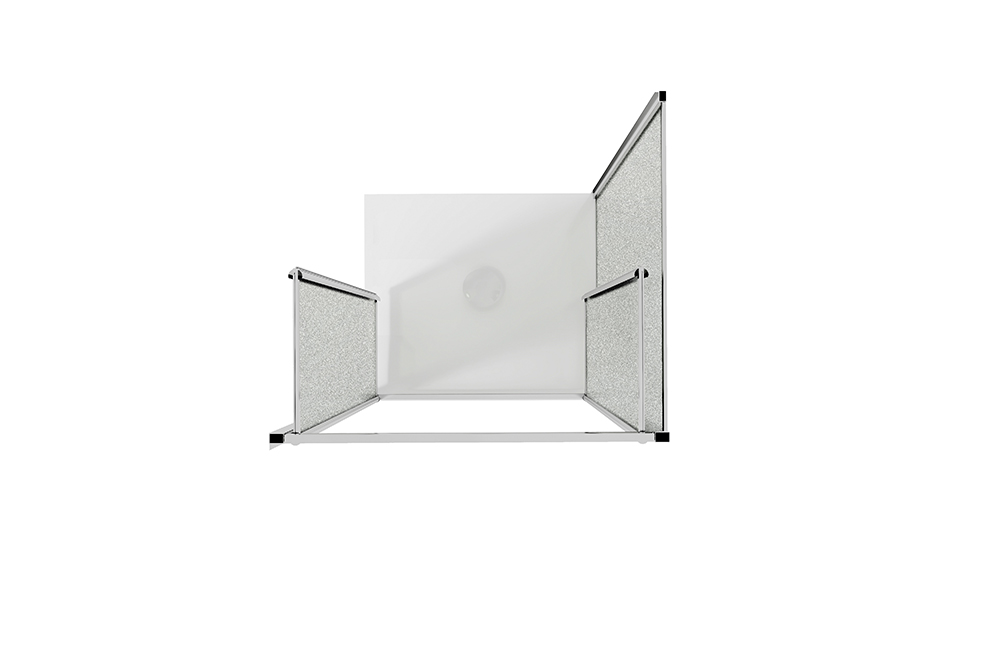

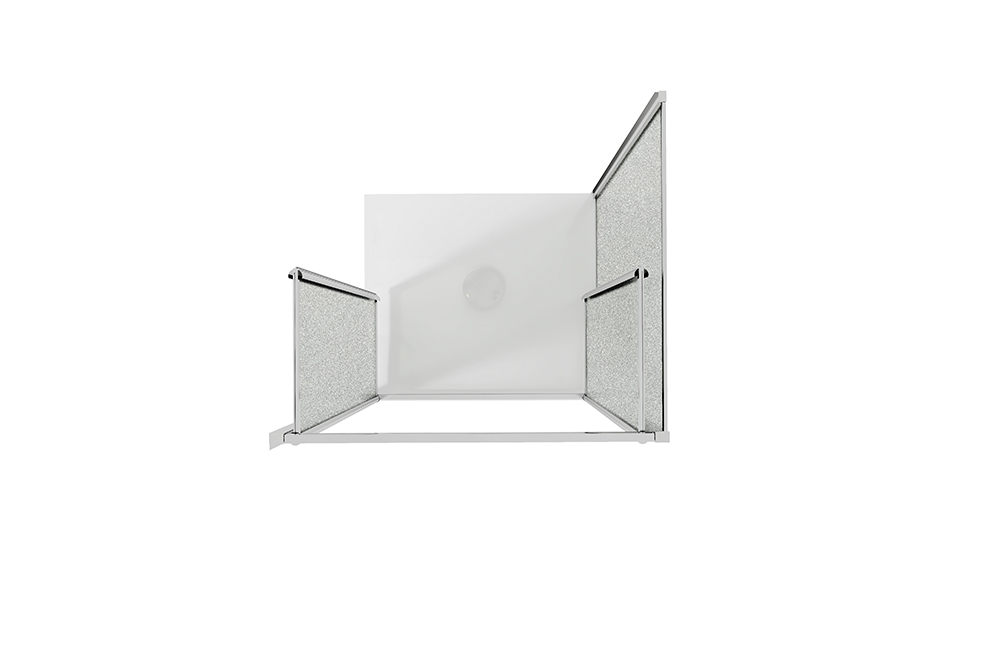

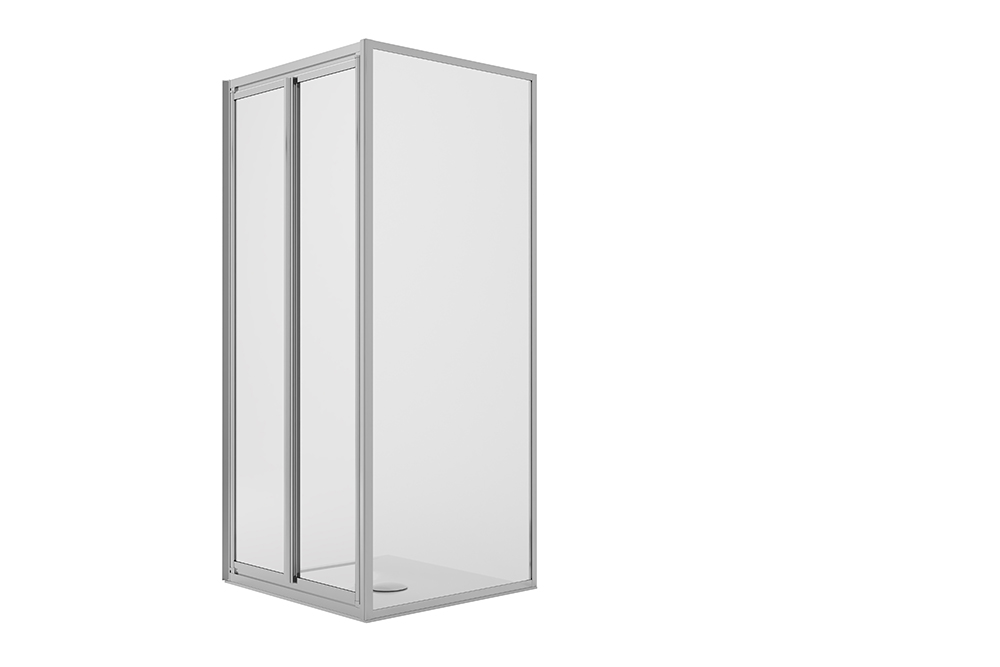

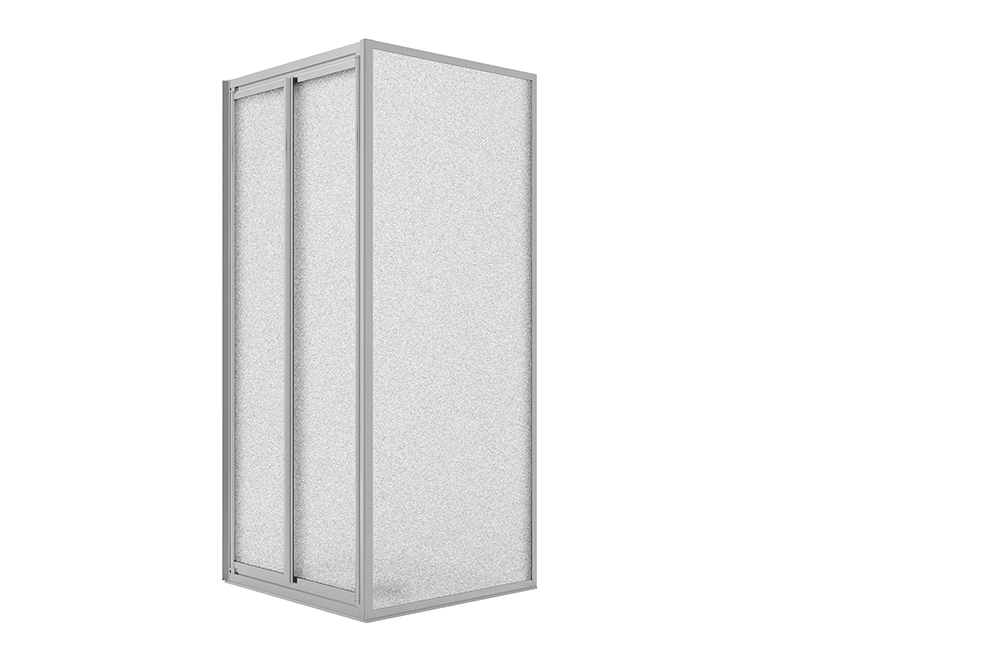

- Corner shower cubicle composed of 1 fixed side panel and 1 side with a double saloon door
- Item height: 1850 mm (without shower tray)
- 4 mm framed toughened safety glass for the door, and 6 mm glass for the fixed panel

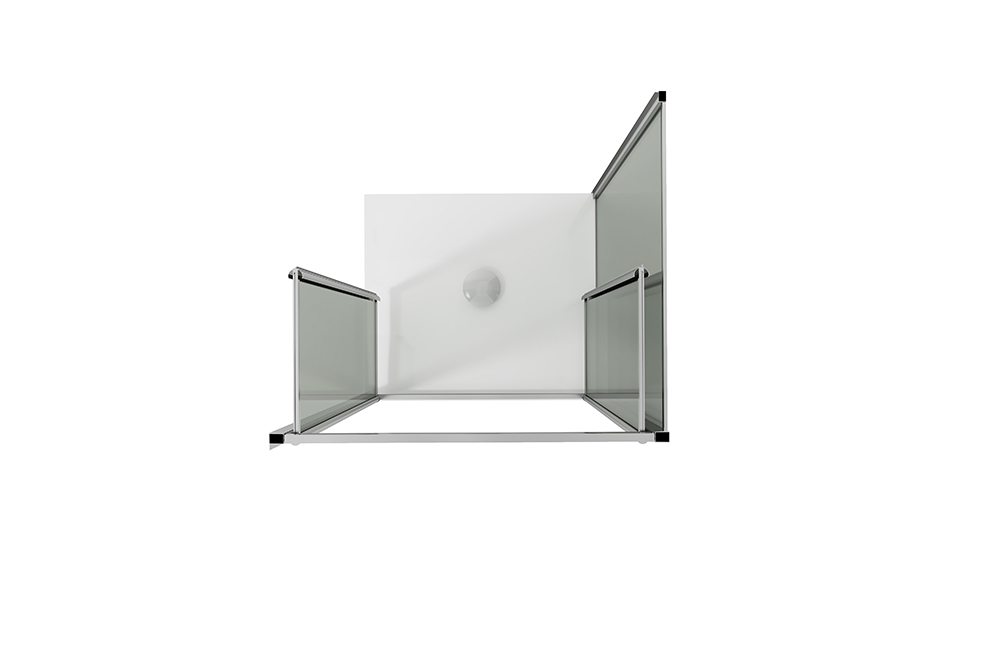

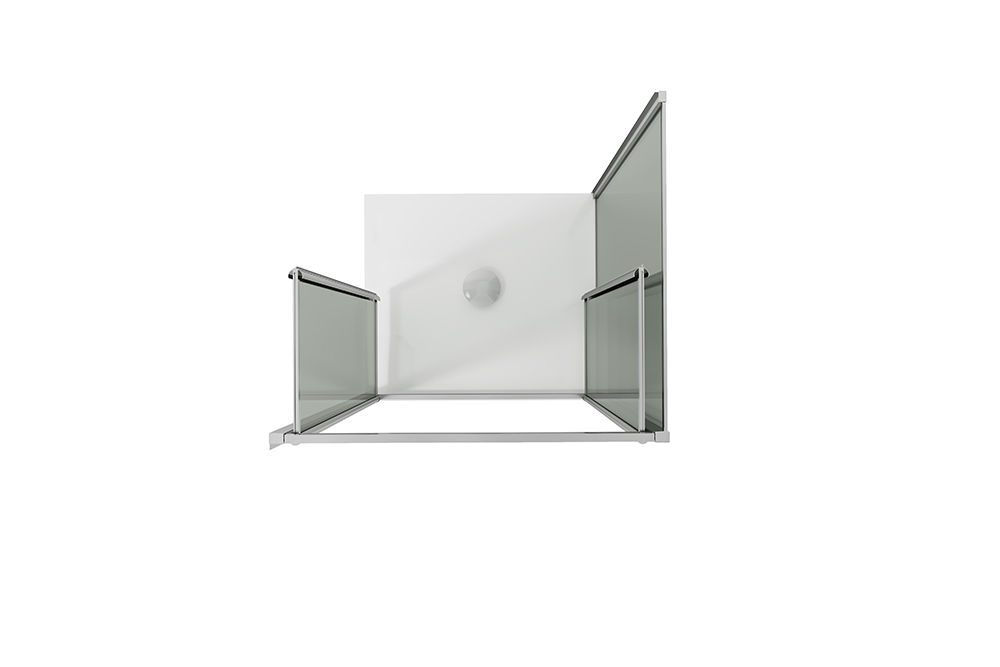

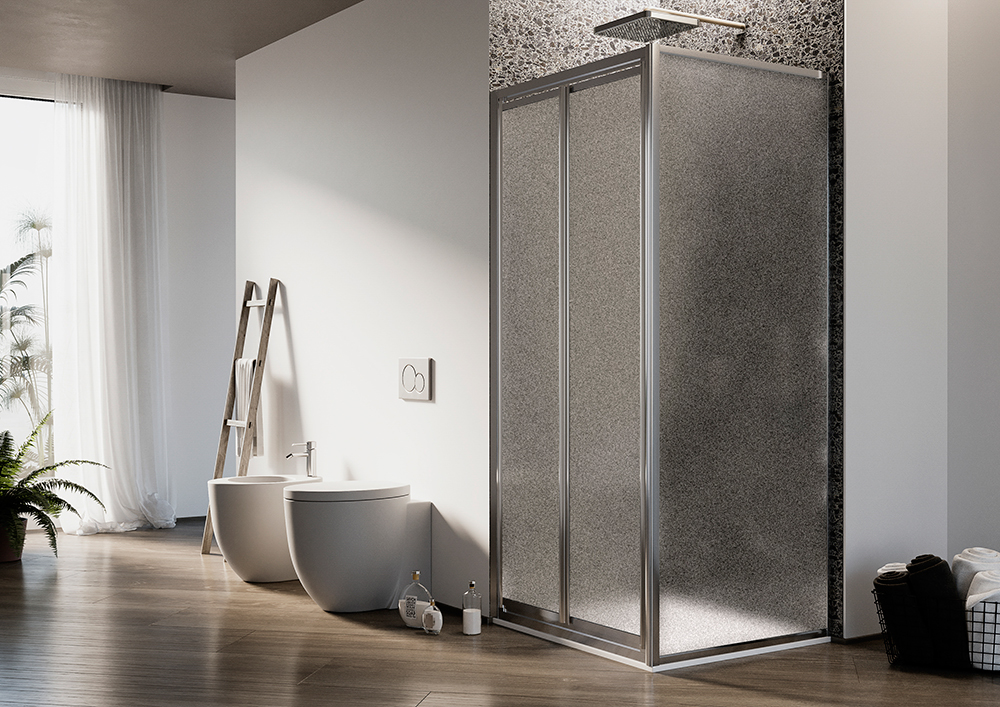

- Available in clear or C-patterned glass
- Outside and inside saloon opening
- Opening system on pivots placed on the far ends of the glass
- Anodized aluminium profiles with chrome finish
- Magnetic closing of doors
- Handle integrated into the panes’ frame
- Gaskets with anti-leaking sealing flap on the door
- Adjustable up to 20 mm for a correct installation (E.g. the 700×1000 mm variation can be adjusted from 680×980 mm up to 700×1000 mm)
- The door has one of the widest entry spaces available commercially, thanks to the well-studied opening system
- You can enlarge the width of the shower cubicle up to 40 mm for side, by buying separately the suitable compensation profiles (E.g. 700×700 mm + 2 profiles item P240-COMP 740×740 mm)
- Shower tray not included
- CE certified product according to the new European Regulation No. 305/2011
- 24 months warranty
| Dimension | Width A | Width B | Height |
|---|---|---|---|
| 70×70 CM | From 68 to 70 CM | From 68 to 70 CM | 185 CM |
| 70×75 CM | From 68 to 70 CM | From 73 to 75 CM | 185 CM |
| 70×80 CM | From 68 to 70 CM | From 78 to 80 CM | 185 CM |
| 70×90 CM | From 68 to 70 CM | From 88 to 90 CM | 185 CM |
| 70×100 CM | From 68 to 70 CM | From 98 to 100 CM | 185 CM |
| 75×75 CM | From 73 to 75 CM | From 73 to 75 CM | 185 CM |
| 75×80 CM | From 73 to 75 CM | From 78 to 80 CM | 185 CM |
| 75×90 CM | From 73 to 75 CM | From 88 to 90 CM | 185 CM |
| 75×100 CM | From 73 to 75 CM | From 98 to 100 CM | 185 CM |
| 80×80 CM | From 78 to 80 CM | From 78 to 80 CM | 185 CM |
| 80×90 CM | From 78 to 80 CM | From 88 to 90 CM | 185 CM |
| 80×100 CM | From 78 to 80 CM | From 98 to 100 CM | 185 CM |
| 90×90 CM | From 88 to 90 CM | From 88 to 90 CM | 185 CM |
| 90×100 CM | From 88 to 90 CM | From 98 to 100 CM | 185 CM |
| Door-side dimension | Entry |
|---|---|
| 70 CM | 56 CM |
| 75 CM | 61 CM |
| 80 CM | 66 CM |
| 90 CM | 76 CM |
| 100 CM | 86 CM |
Download assembly instructions
