3 SIDED ENCLOSURE
West Trio
Our West line distinguishes itself for the new opening system, which is integrated into the profile and offers the biggest entry space, and a simple and immediate access to the inner of the shower room. A selection of slim and essential items, which will transform your bathroom by conciliating the design research to the practicality.

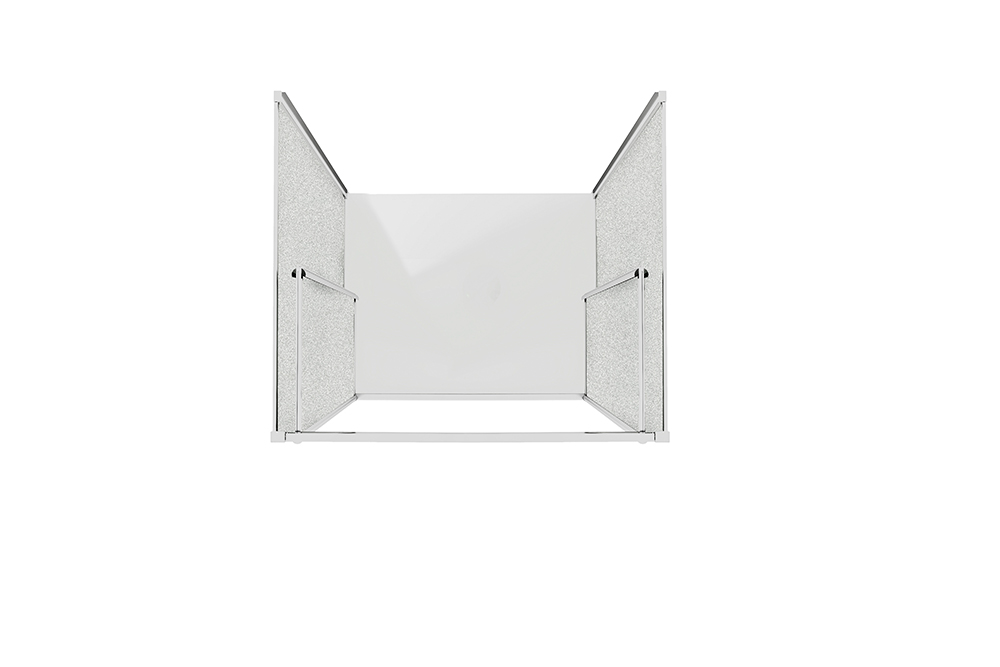

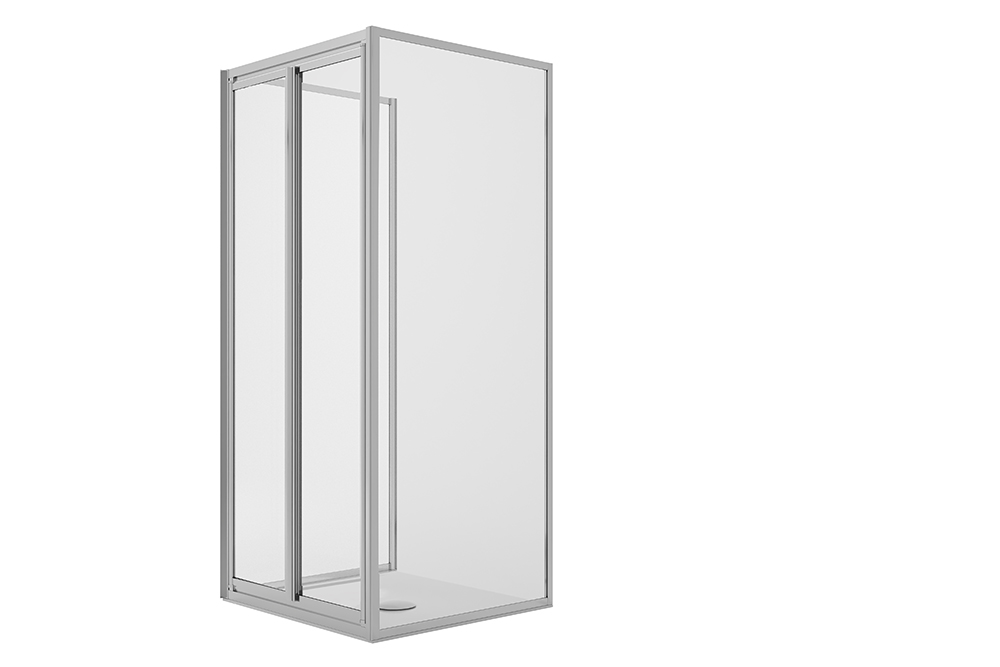

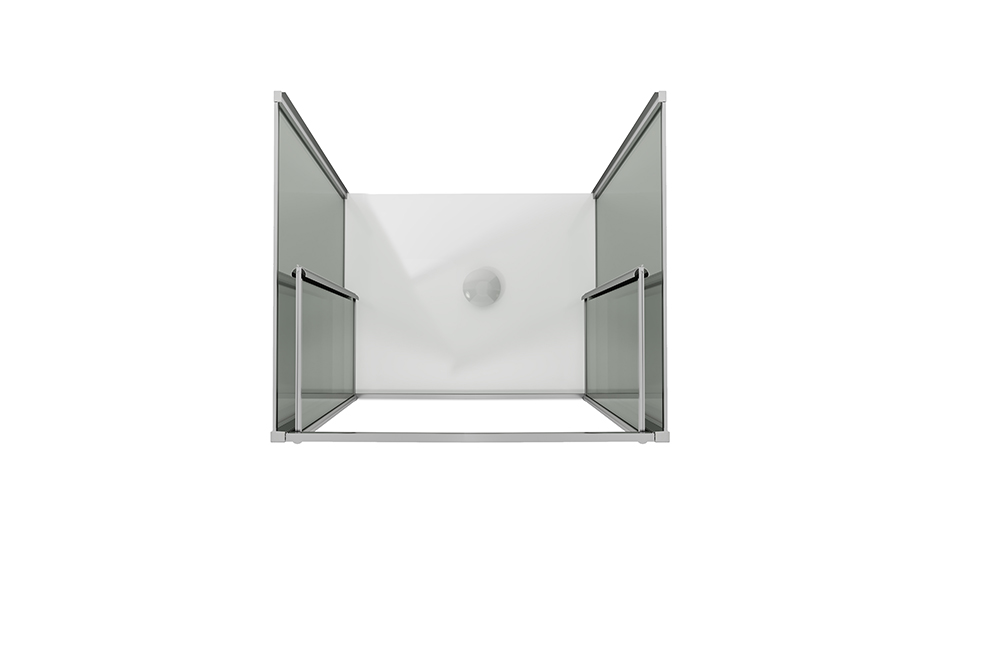

- Three-sided shower cubicle composed of 2 fixed side panels and 1 side with a double saloon door
- Item height: 1980 mm (without shower tray)
- 4 mm framed toughened safety glass for the door, and 6 mm glass for the fixed panel

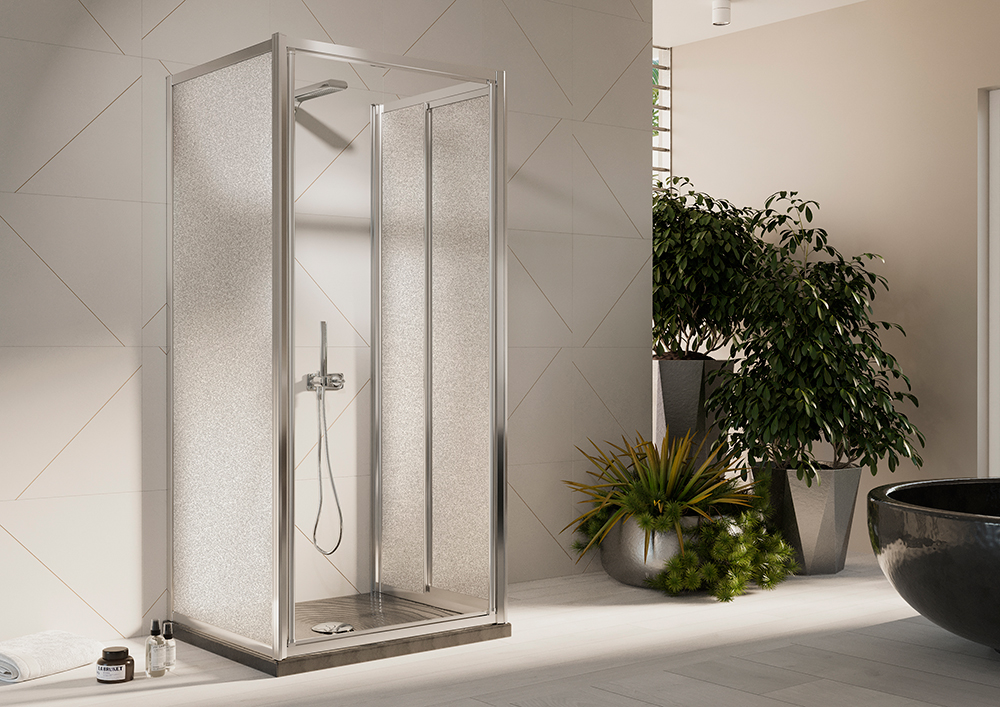

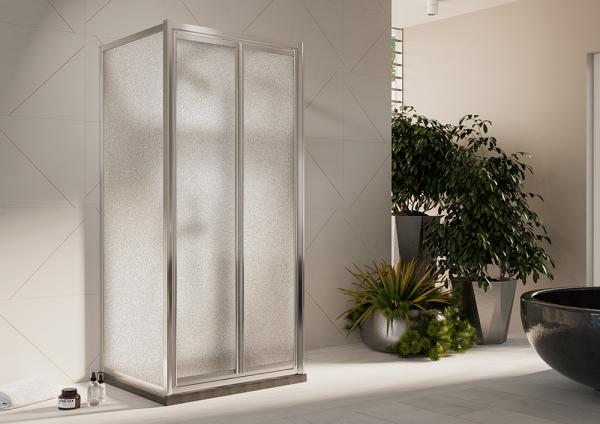

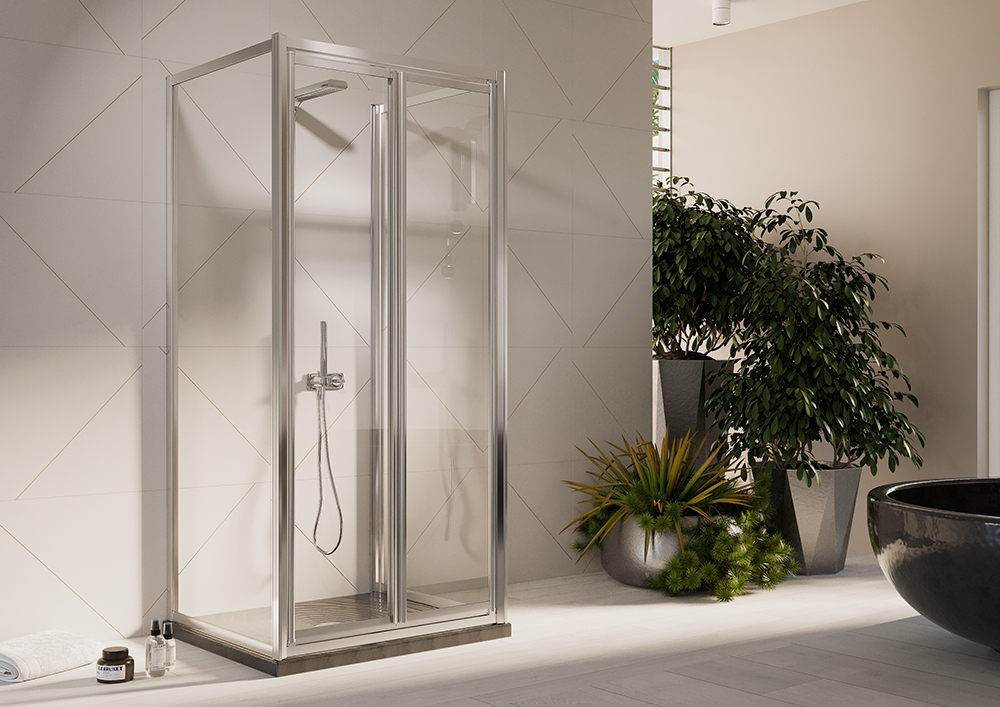

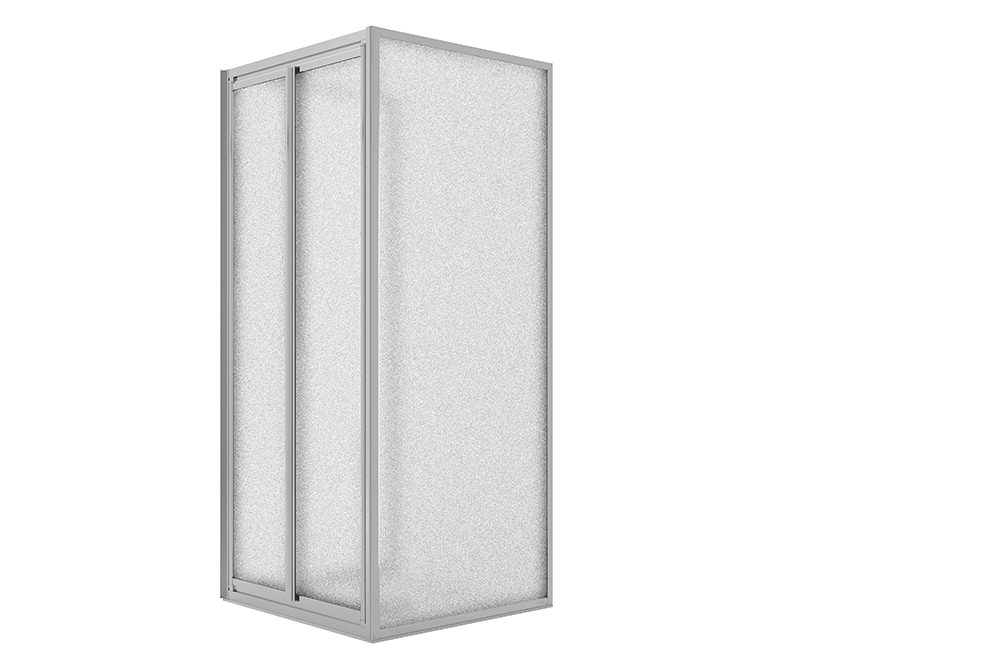

- Available in clear or C-patterned glass

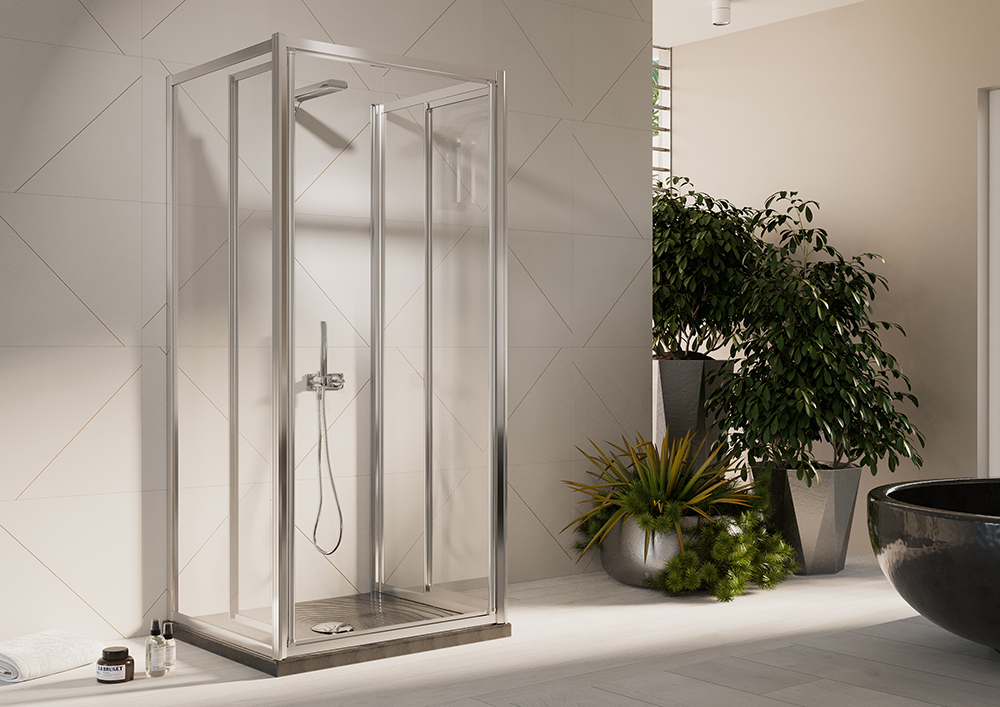

- Outside and inside saloon opening
- Opening system on pivots placed on the far ends of the glass
- Anodized aluminium profiles with chrome finish
- Magnetic closing of doors
- Wall fastening system with concealed screws thanks to the new patented profile
- Handle integrated into the panes’ frame
- Gaskets with anti-leaking sealing flap on the door
- Adjustable up to 25 mm for a correct installation (E.g. the 700x750x700 mm variation can be adjusted from 675x730x675 mm up to 700x750x700 mm)
- The door has one of the widest entry spaces available commercially, thanks to the well-studied opening system
- You can enlarge the width of the shower cubicle up to 20 mm for the fixed sides, by buying separately the suitable compensation profiles (E.g. 700x750x700 mm + 2 profiles item P140-COMP -> Shower cubicle 720x750x720 mm)
- Including upper caps
- Shower tray not included
- CE certified product according to the new European Regulation No. 305/2011
- 24 months warranty
| Dimension | Width A | Width B | Height |
|---|---|---|---|
| 70x70x70 CM | From 67,5 to 70 CM | From 68 to 70 CM | 198 CM |
| 70x75x70 CM | From 67,5 to 70 CM | From 73 to 75 CM | 198 CM |
| 70x80x70 CM | From 67,5 to 70 CM | From 78 to 80 CM | 198 CM |
| 70x90x70 CM | From 67,5 to 70 CM | From 88 to 90 CM | 198 CM |
| 70x100x70 CM | From 67,5 to 70 CM | From 98 to 100 CM | 198 CM |
| 75x70x75 CM | From 72,5 to 75 CM | From 68 to 70 CM | 198 CM |
| 75x75x75 CM | From 72,5 to 75 CM | From 73 to 75 CM | 198 CM |
| 75x80x75 CM | From 72,5 to 75 CM | From 78 to 80 CM | 198 CM |
| 75x90x75 CM | From 72,5 to 75 CM | From 88 to 90 CM | 198 CM |
| 75x100x75 CM | From 72,5 to 75 CM | From 98 to 100 CM | 198 CM |
| 80x70x80 CM | From 77,5 to 80 CM | From 68 to 70 CM | 198 CM |
| 80x75x80 CM | From 77,5 to 80 CM | From 73 to 75 CM | 198 CM |
| 80x80x80 CM | From 77,5 to 80 CM | From 78 to 80 CM | 198 CM |
| 80x90x80 CM | From 77,5 to 80 CM | From 88 to 90 CM | 198 CM |
| 80x100x80 CM | From 77,5 to 80 CM | From 98 to 100 CM | 198 CM |
| 90x70x90 CM | From 87,5 to 90 CM | From 68 to 70 CM | 198 CM |
| 90x75x90 CM | From 87,5 to 90 CM | From 73 to 75 CM | 198 CM |
| 90x80x90 CM | From 87,5 to 90 CM | From 78 to 80 CM | 198 CM |
| 90x90x90 CM | From 87,5 to 90 CM | From 88 to 90 CM | 198 CM |
| 90x100x90 CM | From 87,5 to 90 CM | From 98 to 100 CM | 198 CM |
| Door-side dimension | Entry |
|---|---|
| 70 CM | 55 CM |
| 75 CM | 60 CM |
| 80 CM | 65 CM |
| 90 CM | 75 CM |
| 100 CM | 85 CM |
